MB-86 SI
The modern aluminum system used for production of exterior architectural elements that requires thermal and acoustic insulation.
Features
This profile has a three-chamber structure with the structural depth of the window sections 77 mm (frames) and 86 mm (sash), with a thermal break made of polyamide reinforced with fiberglass. Extra chamber in the thermal break.
Maco Multi Matic KS fittings with two anti-burglary bolts in standard; the window is equipped with a blockage against handle misplacement and with a sash lift*; micro-ventilation in a slot **;
*depending on window height
**for tilt and turn windows
Fittings
Profile
Glass
Glass packages up to 65mm;in standard one-chamber glass package of heat transfer coefficient Ug = 1,0 W/(m2K) according to PN-EN674; he possibility to apply a three-glass package of U= 0,5 W/(m2K) coefficient or a four-glass package filled with krypton of Ug=0,3 W/(m2K); the possibility to apply glass with increased acoustic insulation, tempered, safety, anti-burglary, ornament, solar protective.

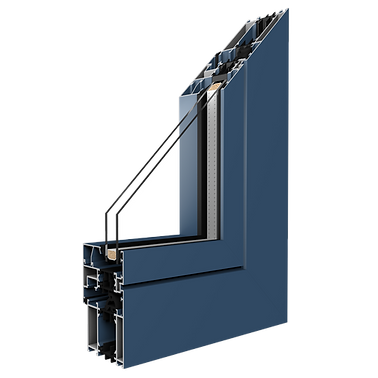

MB-70
The modern aluminum system used for production an exterior architectural elements that require thermal and acoustic insulation.
Features
Windows in MB-70 and MB-70HI systems may be used both in individual assembly and in aluminum facades.
Maco Multi Matic KS with two anti-burglary bolts in standard. Window equipped with a blockage against handle misplacement and a sash lift *; micro-ventilation in a slot **; *depending on the window height **for tilt and turn windows
Fittings
Profile
Glass
Glass packages up to 50mm.One-chamber glass package with thermal transmittance of Ug=1,0 W/(m2K) according to PN-EN674 in stadard. Three-glass package of Ug=0,5 W/(m2K) coefficient or four-glass with krypton of Ug=0,3 W/(m2K) also possible to use. Glass with enhanced sound insulation, tempered, safety, anti-burglary, ornament and solar protective easy to get.
MB-70 HI
The modern aluminum system used for production of exterior architectural elements that require thermal and acoustic insulation.
Features
Windows in MB-70 and MB-70HI systems may be used both in individual assembly and in aluminum facades
Maco Multi Matic KS in standard two anti-burglary bolts. Window also has a blockage against handle misplacement and a sash lift *; micro-ventilation in a slot **; *depending on the window height **for tilt and turn windows
Fittings
Profile
Glass
Glass packages up to 50mm. One-chamber glass package with thermal transmittance of Ug=1,0 W/(m2K) according to PN-EN674 in standard. The possibility to apply a three-glass package of U=0,5 W/(m2K) coefficient or four-glass with krypton of U=0,3 W/(m2K). Glass with enhanced sound insulation, tempered, safety, anti-burglary, ornament, solar protctive avaiable.
MB-45
Modern aluminium system that allows to create diverse interior design.
Features
Aluminium profile 45mm ( frame) and 54mm (sash) depth.
Maco Multi Matic KS with two anti-burglary bolts. Window equipped with a blockage against handle misplacement and a sash lift *; micro-ventilation in a slot **; *depending on the window height **for tilt and turn windows
Fittings
Profile
Glass
Glass packages available up to 24 mm; the possibility to apply glass with enhanced sound insulation, tempered, safety, anti-burglary, ornament and solar protective.
